引言

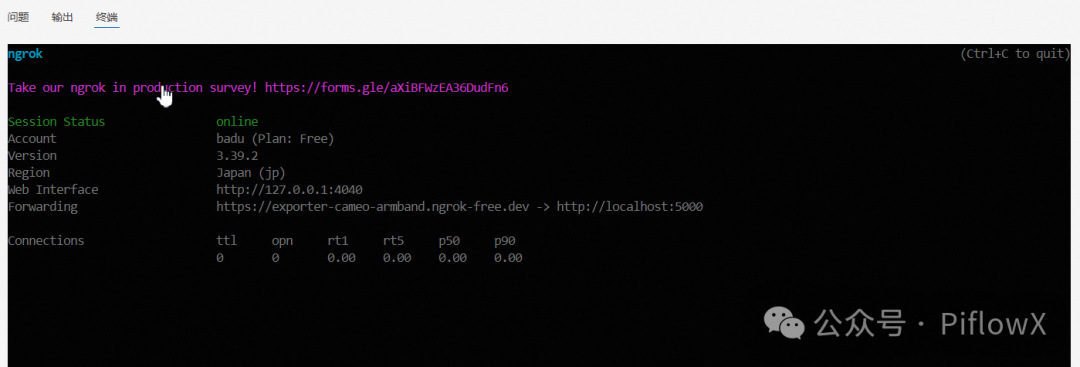

大家好！今天给大家带来一个超实用的技术教程组合拳——如何在阿里云ModelScope免费服务器上搭建文件上传服务，并通过ngrok实现内网穿透，让外网也能访问你的服务。全程保姆级教学，跟着操作就能成功！
一、领取ModelScope免费服务器
1. 什么是ModelScope Notebook？
ModelScope Notebook是阿里云提供的云端机器学习开发环境，支持Python编程，实名用户可获得免费算力额度，完美解决本地算力不足的问题。
2. 领取步骤
第一步：登录注册
访问 魔塔社区 注册账号并完成实名认证
第二步：进入Notebook
点击右上角「控制台」 选择「Notebook」进入管理页面
第三步：创建实例
点击「新建Notebook」
选择GPU环境（36小时免费额度）或CPU环境（长期免费使用）
等待实例启动（约1-2分钟）
二、搭建文件上传服务
1. 项目结构
如果选择CPU环境，若超过1小时无操作将触发自动关闭功能，重启后会清空/mnt/workspace之外的数据，所有为了持久化，将数据放在/mnt/workspace下。
首先创建项目目录结构：
mkdir -p /mnt/workspace/py_file/{templates,uploads,chunks}
cd py_file
2. 创建Flask服务端代码

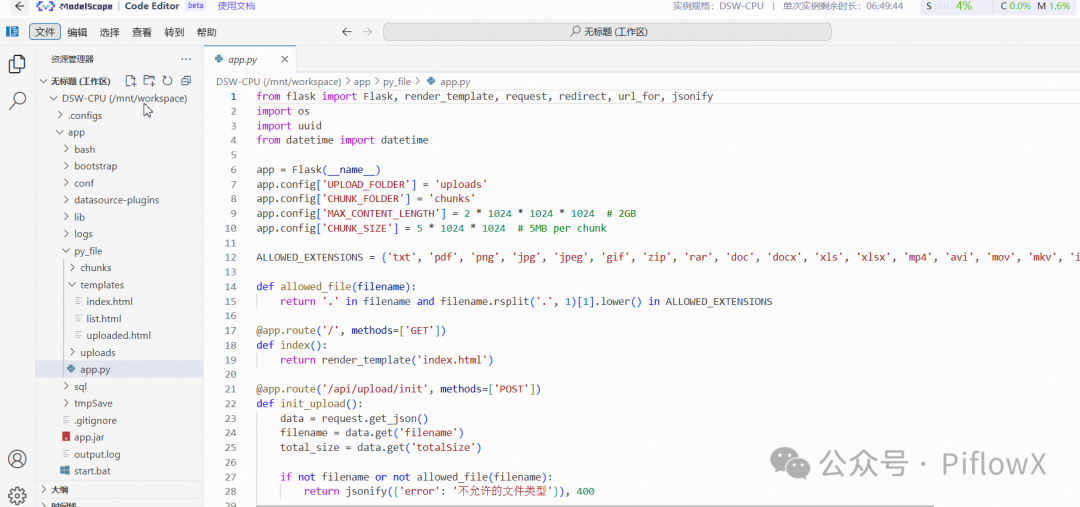

创建 app.py 文件：
from flask import Flask, render_template, request, redirect, url_for, jsonify
import os
import uuid
from datetime import datetime
app = Flask(__name__)
app.config['UPLOAD_FOLDER'] = 'uploads'
app.config['CHUNK_FOLDER'] = 'chunks'
app.config['MAX_CONTENT_LENGTH'] = 2 * 1024 * 1024 * 1024# 2GB
app.config['CHUNK_SIZE'] = 5 * 1024 * 1024# 5MB per chunk
ALLOWED_EXTENSIONS = {'txt', 'pdf', 'png', 'jpg', 'jpeg', 'gif', 'zip', 'rar',
'doc', 'docx', 'xls', 'xlsx', 'mp4', 'avi', 'mov', 'mkv'}
defallowed_file(filename):
return'.'in filename and filename.rsplit('.', 1)[1].lower() in ALLOWED_EXTENSIONS
@app.route('/', methods=['GET'])
defindex():
return render_template('index.html')
@app.route('/api/upload/init', methods=['POST'])
definit_upload():
data = request.get_json()
filename = data.get('filename')
total_size = data.get('totalSize')
ifnot filename ornot allowed_file(filename):
return jsonify({'error': '不允许的文件类型'}), 400
upload_id = str(uuid.uuid4())
chunk_dir = os.path.join(app.config['CHUNK_FOLDER'], upload_id)
os.makedirs(chunk_dir, exist_ok=True)
return jsonify({
'uploadId': upload_id,
'chunkSize': app.config['CHUNK_SIZE'],
'resumed': False
})
@app.route('/api/upload/chunk', methods=['POST'])
defupload_chunk():
upload_id = request.form.get('uploadId')
chunk_index = int(request.form.get('chunkIndex'))
file = request.files.get('file')
ifnot upload_id ornot file:
return jsonify({'error': '缺少参数'}), 400
chunk_dir = os.path.join(app.config['CHUNK_FOLDER'], upload_id)
chunk_path = os.path.join(chunk_dir, f'chunk_{chunk_index}')
file.save(chunk_path)
return jsonify({'chunkIndex': chunk_index, 'status': 'success'})
@app.route('/api/upload/complete', methods=['POST'])
defcomplete_upload():
data = request.get_json()
upload_id = data.get('uploadId')
filename = data.get('filename')
chunk_dir = os.path.join(app.config['CHUNK_FOLDER'], upload_id)
timestamp = datetime.now().strftime('%Y%m%d_%H%M%S_')
final_filename = timestamp + filename
final_path = os.path.join(app.config['UPLOAD_FOLDER'], final_filename)
withopen(final_path, 'wb') as final_file:
chunk_files = sorted([f for f in os.listdir(chunk_dir) if f.startswith('chunk_')],
key=lambda x: int(x.split('_')[1]))
for chunk_file in chunk_files:
chunk_path = os.path.join(chunk_dir, chunk_file)
withopen(chunk_path, 'rb') as cf:
final_file.write(cf.read())
import shutil
shutil.rmtree(chunk_dir)
return jsonify({
'filename': filename,
'savedName': final_filename,
'size': os.path.getsize(final_path),
'uploadTime': datetime.now().strftime('%Y-%m-%d %H:%M:%S')
})
@app.route('/list')
deflist_files():
files = []
if os.path.exists(app.config['UPLOAD_FOLDER']):
for filename in os.listdir(app.config['UPLOAD_FOLDER']):
file_path = os.path.join(app.config['UPLOAD_FOLDER'], filename)
if os.path.isfile(file_path):
files.append({
'name': filename,
'size': os.path.getsize(file_path),
'mtime': datetime.fromtimestamp(os.path.getmtime(file_path)).strftime('%Y-%m-%d %H:%M:%S')
})
files.sort(key=lambda x: x['mtime'], reverse=True)
return render_template('list.html', files=files)

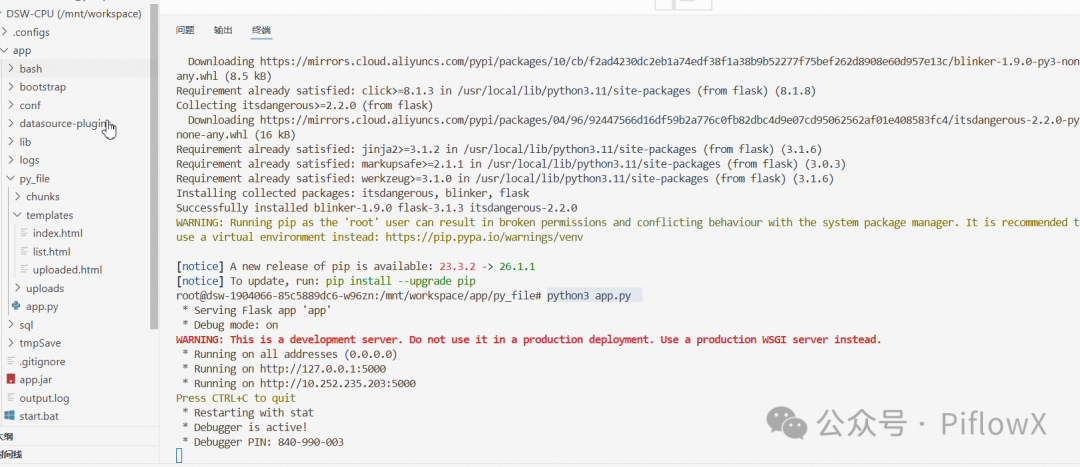

if __name__ == '__main__':
os.makedirs(app.config['UPLOAD_FOLDER'], exist_ok=True)
os.makedirs(app.config['CHUNK_FOLDER'], exist_ok=True)
app.run(debug=True, host='0.0.0.0', port=5000)
3. 创建前端页面

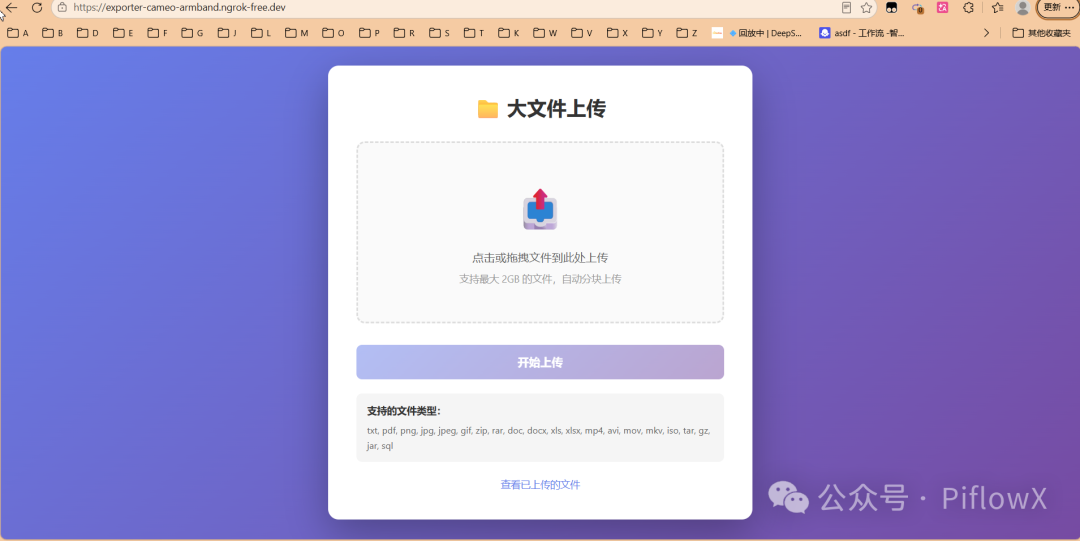

创建 templates/index.html：
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="UTF-8">
<title>文件上传</title>
<style>
body { font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif; padding: 20px; max-width: 600px; margin: 0 auto; }
.upload-area { border: 2px dashed #ccc; border-radius: 10px; padding: 40px; text-align: center; cursor: pointer; }
.upload-area:hover { border-color: #007bff; }
#fileInput { display: none; }
.progress-bar { width: 100%; height: 20px; background: #eee; border-radius: 10px; margin-top: 20px; }
.progress { height: 100%; background: #007bff; border-radius: 10px; transition: width 0.3s; }
</style>
</head>
<body>
<h1>? 文件上传</h1>
<div class="upload-area" id="uploadArea">
<p>点击或拖拽文件到此处上传</p>
<p style="color: #666; font-size: 14px;">支持大文件分片上传（最大2GB）</p>
</div>
<input type="file" id="fileInput">
<div class="progress-bar" id="progressBar" style="display: none;">
<div class="progress" id="progress"></div>
</div>
<p id="status"></p>
<script>
const uploadArea = document.getElementById('uploadArea');
const fileInput = document.getElementById('fileInput');
const progressBar = document.getElementById('progressBar');
const progress = document.getElementById('progress');
const status = document.getElementById('status');
uploadArea.addEventListener('click', () => fileInput.click());
uploadArea.addEventListener('dragover', (e) => e.preventDefault());
uploadArea.addEventListener('drop', (e) => {
e.preventDefault();
const files = e.dataTransfer.files;
if (files.length > 0) uploadFile(files[0]);
});
fileInput.addEventListener('change', (e) =>uploadFile(e.target.files[0]));
asyncfunctionuploadFile(file) {
if (!file) return;
constCHUNK_SIZE = 5 * 1024 * 1024; // 5MB
const totalChunks = Math.ceil(file.size / CHUNK_SIZE);
let uploadedChunks = 0;
progressBar.style.display = 'block';
status.textContent = `初始化上传...`;
const initResponse = awaitfetch('/api/upload/init', {
method: 'POST',
headers: { 'Content-Type': 'application/json' },
body: JSON.stringify({ filename: file.name, totalSize: file.size })
});
const { uploadId, chunkSize } = await initResponse.json();
for (let i = 0; i < totalChunks; i++) {
const start = i * chunkSize;
const end = Math.min(start + chunkSize, file.size);
const chunk = file.slice(start, end);
const formData = newFormData();
formData.append('uploadId', uploadId);
formData.append('chunkIndex', i);
formData.append('totalChunks', totalChunks);
formData.append('file', chunk);
awaitfetch('/api/upload/chunk', { method: 'POST', body: formData });
uploadedChunks++;
progress.style.width = `${(uploadedChunks / totalChunks) * 100}%`;
status.textContent = `上传中: ${Math.round((uploadedChunks / totalChunks) * 100)}%`;
}
const completeResponse = awaitfetch('/api/upload/complete', {
method: 'POST',
headers: { 'Content-Type': 'application/json' },
body: JSON.stringify({ uploadId, filename: file.name })
});
const result = await completeResponse.json();
status.textContent = `✅ 上传成功！文件名: ${result.filename}, 大小: ${formatSize(result.size)}`;
}
functionformatSize(bytes) {
if (bytes < 1024) return bytes + ' B';
if (bytes < 1024 * 1024) return (bytes / 1024).toFixed(2) + ' KB';
if (bytes < 1024 * 1024 * 1024) return (bytes / (1024 * 1024)).toFixed(2) + ' MB';
return (bytes / (1024 * 1024 * 1024)).toFixed(2) + ' GB';
}
</script>
</body>
</html>
4. 创建文件列表页面
创建 templates/list.html：
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>已上传文件列表</title>
<style>
* {
margin: 0;
padding: 0;
box-sizing: border-box;
}
body {
font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;
background: linear-gradient(135deg, #667eea0%, #764ba2100%);
min-height: 100vh;
padding: 40px20px;
}
.container {
background: white;
border-radius: 20px;
padding: 30px;
box-shadow: 020px60pxrgba(0, 0, 0, 0.15);
max-width: 800px;
margin: 0 auto;
}
.header {
display: flex;
justify-content: space-between;
align-items: center;
margin-bottom: 30px;
}
h1 {
color: #333;
font-size: 28px;
display: flex;
align-items: center;
gap: 10px;
}
.btn {
padding: 10px25px;
border: none;
border-radius: 8px;
font-size: 15px;
font-weight: 600;
cursor: pointer;
transition: all 0.3s ease;
text-decoration: none;
display: inline-flex;
align-items: center;
gap: 8px;
}
.btn-primary {
background: linear-gradient(135deg, #667eea0%, #764ba2100%);
color: white;
}
.btn-primary:hover {
transform: translateY(-2px);
box-shadow: 05px20pxrgba(102, 126, 234, 0.4);
}
.btn-danger {
background: #ff4757;
color: white;
padding: 10px20px;
font-size: 15px;
}
.btn-danger:hover {
background: #ff3838;
}
.file-list {
list-style: none;
}
.file-item {
display: flex;
align-items: center;
padding: 15px20px;
border: 1px solid #eee;
border-radius: 10px;
margin-bottom: 12px;
transition: all 0.3s ease;
}
.file-item:hover {
border-color: #667eea;
background: #f8f9ff;
}
.file-icon {
font-size: 36px;
margin-right: 15px;
}
.file-details {
flex: 1;
}
.file-name {
font-weight: 600;
color: #333;
margin-bottom: 5px;
}
.file-meta {
font-size: 13px;
color: #999;
}
.file-actions {
display: flex;
gap: 10px;
}
.no-files {
text-align: center;
padding: 60px20px;
color: #999;
}
.no-files-icon {
font-size: 60px;
margin-bottom: 20px;
}
.no-filesp {
font-size: 16px;
}
</style>
</head>
<body>
<div class="container">
<div class="header">
<h1>? 已上传文件列表</h1>
<a href="/" class="btn btn-primary">? 上传新文件</a>
</div>
{% if files %}
<ul class="file-list">
{% for file in files %}
<li class="file-item">
<div class="file-icon">{{ file.icon }}</div>
<div class="file-details">
<div class="file-name">{{ file.name }}</div>
<div class="file-meta">{{ file.size }} | {{ file.modified }}</div>
</div>
<div class="file-actions">
<a href="/download/{{ file.name }}" class="btn btn-primary">下载</a>
<form action="/delete/{{ file.name }}" method="post" style="display: inline;">
<button type="submit" class="btn btn-danger" onclick="return confirm('确定要删除此文件吗？')">删除</button>
</form>
</div>
</li>
{% endfor %}
</ul>
{% else %}
<div class="no-files">
<div class="no-files-icon">?</div>
<p>暂无上传的文件</p>
</div>
{% endif %}
</div>
</body>
</html>
5. 创建上传成功页面
创建 templates/uploaded.html：
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>上传成功</title>
<style>
* {
margin: 0;
padding: 0;
box-sizing: border-box;
}
body {
font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;
background: linear-gradient(135deg, #667eea0%, #764ba2100%);
min-height: 100vh;
display: flex;
justify-content: center;
align-items: center;
padding: 20px;
}
.container {
background: white;
border-radius: 20px;
padding: 40px;
text-align: center;
box-shadow: 020px60pxrgba(0, 0, 0, 0.15);
max-width: 450px;
width: 100%;
}
.success-icon {
font-size: 80px;
margin-bottom: 20px;
animation: bounce 0.6s ease;
}
@keyframes bounce {
0%, 100% { transform: scale(1); }
50% { transform: scale(1.1); }
}
h1 {
color: #333;
margin-bottom: 15px;
font-size: 28px;
}
p {
color: #666;
margin-bottom: 30px;
font-size: 16px;
}
.file-info {
background: #f8f9fa;
padding: 20px;
border-radius: 12px;
margin-bottom: 30px;
text-align: left;
}
.file-infodiv {
margin-bottom: 10px;
}
.file-infodiv:last-child {
margin-bottom: 0;
}
.file-infostrong {
color: #333;
min-width: 100px;
display: inline-block;
}
.btn {
padding: 12px30px;
border: none;
border-radius: 8px;
font-size: 16px;
font-weight: 600;
cursor: pointer;
transition: all 0.3s ease;
text-decoration: none;
display: inline-block;
}
.btn-primary {
background: linear-gradient(135deg, #667eea0%, #764ba2100%);
color: white;
}
.btn-primary:hover {
transform: translateY(-2px);
box-shadow: 05px20pxrgba(102, 126, 234, 0.4);
}
.btn-secondary {
background: #f0f0f0;
color: #666;
margin-left: 10px;
}
.btn-secondary:hover {
background: #e0e0e0;
}
</style>
</head>
<body>
<div class="container">
<div class="success-icon">✅</div>
<h1>上传成功！</h1>
<p>您的文件已成功上传到服务器</p>
<div class="file-info">
<div><strong>文件名：</strong>{{ file_info.filename }}</div>
<div><strong>文件大小：</strong>{{ file_info.size|format_size }}</div>
<div><strong>上传时间：</strong>{{ file_info.upload_time }}</div>
</div>
<a href="/" class="btn btn-primary">继续上传</a>
<a href="/list" class="btn btn-secondary">查看文件列表</a>
</div>
</body>
</html>
6. 安装依赖并启动服务
# 安装Flask
pip install flask
# 启动服务
python3 app.py
三、什么是ngrok？
ngrok简介
ngrok是一个内网穿透工具，可以将你的本地服务器暴露到公网，让外网用户也能访问。它的核心功能：
? 将本地端口映射到公网URL ? 支持HTTPS加密连接 ? 提供请求日志和流量统计 ? 支持多种协议（HTTP/HTTPS/TCP）
为什么需要ngrok？
开发测试：让远程同事测试你的本地服务 演示展示：向客户展示本地开发的应用 调试Webhook：接收第三方服务的回调
四、使用ngrok开启代理
1. 安装ngrok
方法一：下载安装（推荐）
# 下载ngrok
wget https://bin.ngrok.com/c/bNyj1mQVY4c/ngrok-v3-stable-linux-amd64.tgz
# 解压
tar -xzf ngrok-v3-stable-linux-amd64.tgz
# 移动到系统目录
sudo mv ngrok /usr/local/bin/
方法二：使用npm安装
npm install -g ngrok
2. 注册并获取Auth Token
访问 ngrok官网 注册账号 登录后在「Your Authtoken」页面复制你的token
3. 配置Auth Token
ngrok config add-authtoken YOUR_AUTH_TOKEN
4. 启动ngrok代理
# 将本地5000端口映射到公网
ngrok http 5000
执行后会看到类似如下输出：
Session Status online
Account YourName (Plan: Free)
Version 3.1.0
Region Asia Pacific (ap)
Latency 12ms
Web Interface http://127.0.0.1:4040
Forwarding https://abc123.ngrok.io -> http://localhost:5000
Forwarding http://abc123.ngrok.io -> http://localhost:5000
✨ 重点：
https://abc123.ngrok.io就是你的公网访问地址！
五、上传文件测试
1. 访问上传页面
打开浏览器，访问ngrok提供的公网URL（如 https://abc123.ngrok.io）
2. 上传文件
点击上传区域或拖拽文件到页面 等待上传完成（大文件会自动分片上传，支持断点续传） 查看上传结果
3. 查看已上传文件
访问 https://abc123.ngrok.io/list 查看所有已上传的文件列表
六、常见问题排查
Q1: ngrok启动失败？
解决方案：
检查网络连接是否正常 确保Auth Token配置正确 尝试更换端口： ngrok http 8080
Q2: 文件上传失败？
解决方案：
检查文件大小是否超过2GB限制 确保uploads和chunks目录有写入权限 查看Flask控制台错误日志
Q3: ngrok URL失效？
解决方案：
免费版ngrok每次启动会生成新URL 升级到付费版可获得固定域名 保持ngrok终端窗口打开
总结
今天我们完成了一个完整的技术链路：
? 领取免费服务器：ModelScope Notebook提供免费GPU算力 ? 搭建上传服务：使用Flask实现大文件分片上传 ? 内网穿透：通过ngrok将本地服务暴露到公网 ? 测试上传：成功上传文件到服务器
这套组合拳可以应用在很多场景：
临时文件分享服务 开发测试环境 个人项目展示
支付宝微信扫一扫，打赏作者吧～本文链接：https://kinber.cn/post/6587.html 转载需授权！
推荐本站淘宝优惠价购买喜欢的宝贝:
您阅读本篇文章共花了：
