1. Environment
将 frps 及 frps.ini 放到具有公网 IP 的机器上。server端
将 frpc 及 frpc.ini 放到处于内网环境的机器上。client端
| Host | OS | 网络 | 防火墙 | ip地址 | Software |
|---|---|---|---|---|---|
| 阿里云主机 | Ubuntu 18.04.2 LTS | 可连接internet，固定ip | 关闭，相关安全组打开 | 1.1.1.1 | frps |
| 内网主机 | Ubuntu 18.04.4 LTS | 可连接internet，没有固定ip | 关闭 | 192.168.0.123 | frpc openvpn |
openvpn：192.168.0.123 :1194
2. Install frp server use Official script
地址：https://github.com/fatedier/frp
中文地址：https://github.com/fatedier/frp/blob/master/README_zh.md
在阿里云服务器上部署server端，server端需要公网ip
# apt 更新apt-get update# 下载frps服务端脚本wget --no-check-certificate https://raw.githubusercontent.com/clangcn/onekey-install-shell/master/frps/install-frps.sh -O ./install-frps.sh# 修改脚本权限chmod 700 ./install-frps.sh# 执行脚本安装./install-frps.sh install Please select frps download url: [1].aliyun (default) [2].github Enter your choice (1, 2 or exit. default [aliyun]): 1--------------------------------------- Your select: 1--------------------------------------- Loading network version for frps, please wait... frps Latest release file frp_0.20.0_linux_amd64.tar.gz Loading You Server IP, please wait... You Server IP:1.1.1.1Please input your server setting: Please input frps bind_port [1-65535](Default Server Port: 5443): frps bind_port: 5443Please input frps vhost_http_port [1-65535](Default vhost_http_port: 80):4534frps vhost_http_port: 4534Please input frps vhost_https_port [1-65535](Default vhost_https_port: 443):4443frps vhost_https_port: 4443Please input frps dashboard_port [1-65535](Default dashboard_port: 6443): frps dashboard_port: 6443Please input dashboard_user (Default: admin): frps dashboard_user: admin Please input dashboard_pwd (Default: XyQbHI54):Swl19960706 frps dashboard_pwd: Swl19960706 Please input token (Default: oTmRbwfBJ6fE4cKE): frps token: oTmRbwfBJ6fE4cKE Please input frps max_pool_count [1-200] (Default max_pool_count: 50): frps max_pool_count: 50##### Please select log_level #####1: info (default)2: warn3: error4: debug##################################################### Enter your choice (1, 2, 3, 4 or exit. default [1]): log_level: info Please input frps log_max_days [1-30] (Default log_max_days: 3 day):30 frps log_max_days: 30 ##### Please select log_file #####1: enable (default)2: disable##################################################### Enter your choice (1, 2 or exit. default [1]): log_file: enable ##### Please select tcp_mux #####1: enable (default)2: disable##################################################### Enter your choice (1, 2 or exit. default [1]): tcp_mux: true ##### Please select kcp support #####1: enable (default)2: disable##################################################### Enter your choice (1, 2 or exit. default [1]): kcp support: true ============== Check your input ============== You Server IP : 1.1.1.1 Bind port : 5443 kcp support : true vhost http port : 4534 vhost https port : 4443 Dashboard port : 6443 Dashboard user : admin Dashboard password : password token : oTmRbwfBJ6fE4cKE tcp_mux : true Max Pool count : 50 Log level : info Log max days : 30 Log file : enable ============================================== Press any key to start...or Press Ctrl+c to cancel frps install path:/usr/local/frps config file for frps ... done download frps ... done download /etc/init.d/frps... done setting frps boot... done +--------------------------------------------------+ | Manager for Frps, Written by Clang | +--------------------------------------------------+ | Intro: http://koolshare.cn/thread-65379-1-1.html | +--------------------------------------------------+ Starting Frps(0.20.0)... done Frps (pid 28794)is running. +---------------------------------------------------------+ | frps for Linux Server, Written by Clang | +---------------------------------------------------------+ | A tool to auto-compile & install frps on Linux | You Server IP : 1.1.1.1 +---------------------------------------------------------+ | Intro: http://koolshare.cn/thread-65379-1-1.html | +---------------------------------------------------------+ Congratulations, frps install completed! ============================================== You Server IP : 1.1.1.1 Bind port : 5443 KCP support : true vhost http port : 4534 vhost https port : 4443 Dashboard port : 6443 token : oTmRbwfBJ6fE4cKE tcp_mux : true Max Pool count : 50 Log level : info root@ali:/usr/local/frps# frps start 2020/06/14 17:45:22 [I] [service.go:128] frps tcp listen on 0.0.0.0:7000 2020/06/14 17:45:22 [I] [root.go:190] Start frps success Log max days : 30 Log file : enable ============================================== frps Dashboard : http://1.1.1.1:6443/ Dashboard user : admin Dashboard password : password

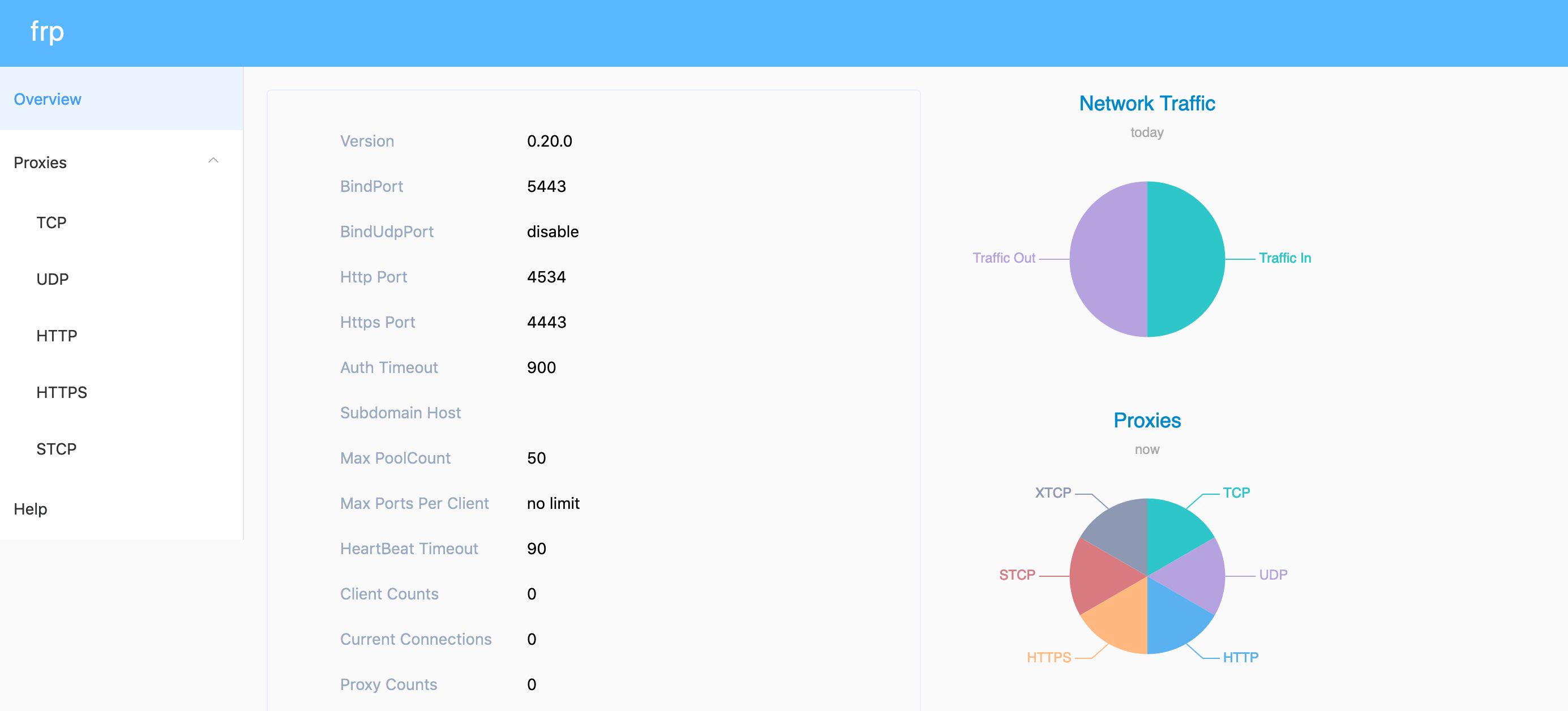

3. dashboard on browser
http://1.1.1.1/6443 Dashboard user : admin Dashboard password : password
4. Port usage on frp server
在frp
root@ali:~# netstat -lntup | grep frptcp6 0 0 :::80 :::* LISTEN 29895/frps tcp6 0 0 :::4534 :::* LISTEN 28794/frps tcp6 0 0 :::7000 :::* LISTEN 29895/frps tcp6 0 0 :::443 :::* LISTEN 29895/frps tcp6 0 0 :::4443 :::* LISTEN 28794/frps tcp6 0 0 :::5443 :::* LISTEN 28794/frps tcp6 0 0 :::6443 :::* LISTEN 28794/frps udp6 0 0 :::1995 :::* 29895/frps udp6 0 0 :::5443 :::* 28794/frps
5.Install fro client on linux and 64
下载地址：https://github.com/fatedier/frp/releases/
国内下载地址：https://file.kskxs.com/?dir=frp
root@jms-ansible-prom-123:/usr/local/frp_0.32.1_linux_amd64# pwd/usr/local/frp_0.32.1_linux_amd64
5.1 opevpn
略
5.1 Client configuration file
将 frpc 及 frpc.ini 放到处于内网环境的机器上。client端
dns 配置块，注意 vpn的默认端口改为1995
root@jms-ansible-prom-123:/usr/local/frp_0.32.1_linux_amd64# cat frpc.ini[common] server_addr = 1.1.1.1 server_port = 7000 privilege_token = oTmRbwfBJ6fE4cKE [dns] type = udp local_ip = 192.168.0.123 local_port = 1194 remote_port = 1995
附赠一个https 协议的
# root @ k8s-master-171 in /tmp/frp_0.32.1_linux_amd64 [20:38:41]$ cat frpc.ini [common] server_addr = 1.1.1.1 server_port = 7000 privilege_token = oTmRbwfBJ6fE4cKE [https] type = tcp local_ip = 1.1.1.1 local_port = 443 remote_port = 443 custom_domains = 1.1.1.1 [http] type = tcp local_ip = 192.168.0.171 local_port = 80 remote_port = 80 custom_domains = 1.1.1.1
5.2 run frpc
$ ./frpc -c ./frpc.ini
Supervisor conf
[program:frpc]directory = /usr/local/frp_0.32.1_linux_amd64command = /usr/local/frp_0.32.1_linux_amd64/frpc -c frpc.iniuser=rootnumprocs=1stopsignal=KILLstartretries=1autostart=trueredirect_stderr=truestdout_logfile = /opt/supervisord/var/log/frpc.log
6 demo

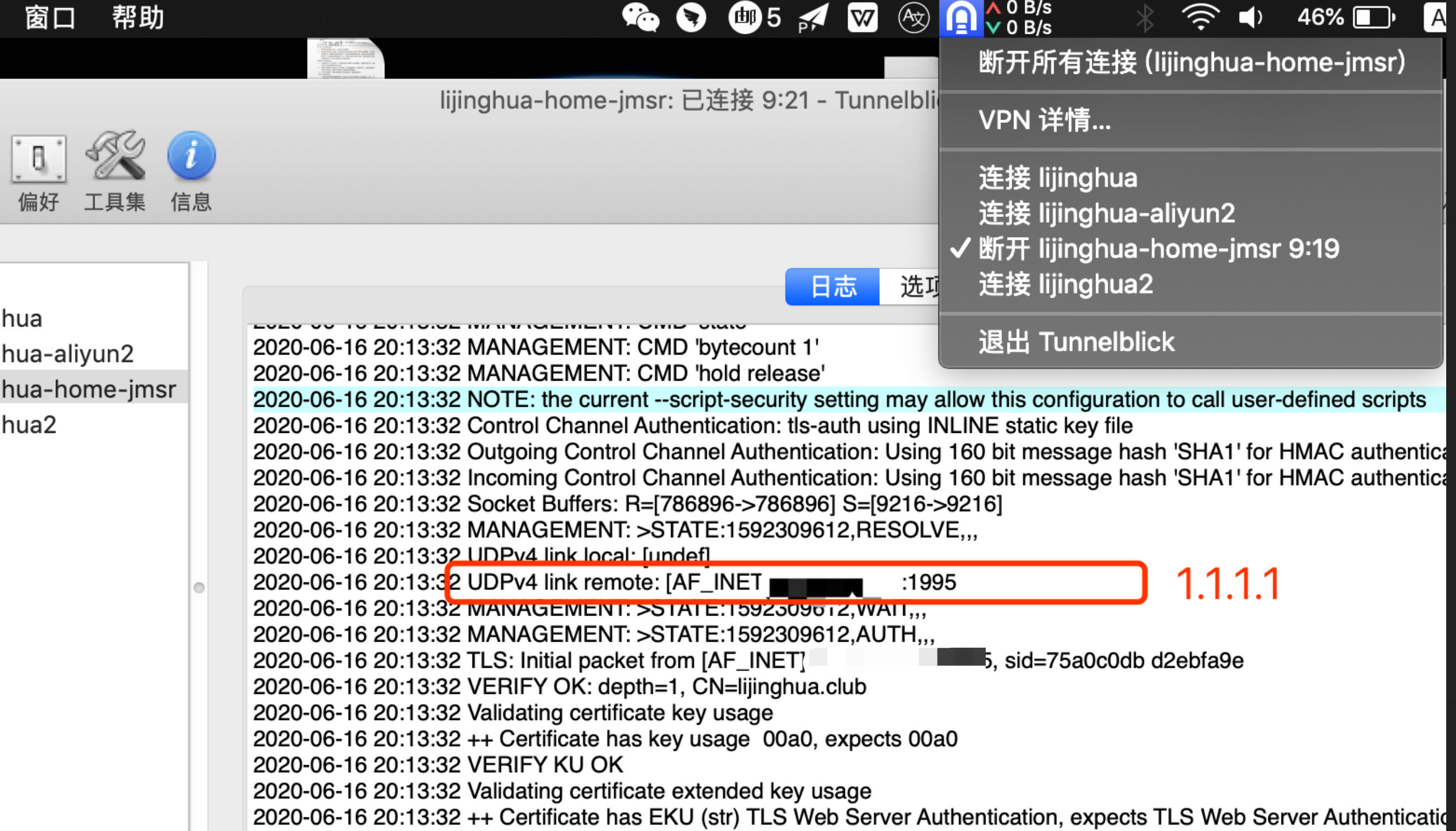

Vpn 连接
内网连接测试
