tinkpad BIOS 超级密码清除

关于tinkpad mp;spm=1001.2101.3001.7020","extra":"{\"searchword\":\"BIOS\"}"}" data-tit="BIOS" data-pretit="bios" style="box-sizing: border-box; outline: none; margin: 0px 3px 0px 0px; padding: 0px 14px 0px 3px; text-decoration-line: none; cursor: pointer; background: url("../img/iconHighlight.svg") right top / 12px 14px no-repeat transparent; color: rgb(252, 85, 49); overflow-wrap: break-word; border-radius: 3px; box-shadow: none;">BIOS 超级密码清除
首先感谢james-lx[发布文章]
(https://blog.csdn.net/ot512csdn/article/details/72571674)
就在昨天装系统装的不知咋地 BIOS需要密码当时就蒙圈了密码什么的是八年前的吧，，早忘记了
搜了几个帖子
首先需要知道安全硬件芯片位置，感谢前面大师的帖子我的笔记本式410s http://www.allservice.ro/forum/images/R61.jpg
http://www.allservice.ro/forum/images/r61_14_wide.jpg [14’ widescreen]
http://www.allservice.ro/forum/images/r61_15_normal.jpg [15’ 4/3]
http://www.allservice.ro/forum/images/r61_15_nvidia.jpg [15’ Nvidia]

Courtesy JD Choi - Korea for the 1st photo and Mario Dahn - Germany for 15’ ones.

T61:

P24S08 (8 pin) eeprom is on the back of the board, you may need to consult the T61 Hardware Maintenance Manual if you want to dismantle it.

HMM here:

Code:
http://www-307.ibm.com/pc/support/site.wss/document.do?sitestyle=lenovo&lndocid=MIGR-39298

T61 eeprom here:

http://www.allservice.ro/forum/images/T61-1.jpg
http://www.allservice.ro/forum/images/T61-2.jpg
http://www.allservice.ro/forum/images/T61-3.jpg (T61p-wide. New layout)
http://www.allservice.ro/forum/images/t61-alt.jpg (Alternate layout)

Courtesy R. Katz - USA, for the new T61p images and for all support.

X61:

This is using a small factor PS08 eeprom (24RF08 clone), its position is below the “M” key. It requires the keyboard, front bezel and the modem sub-board to be taken apart.

X61 eeprom here:
http://www.allservice.ro/forum/images/X61.jpg

I wish to express our gratitude to S. Helie (UK) who helped us with the first X61 works, and last but not least, to S. Cyiako (Sweden) who mailed us a perfect X61 mainboard for the tests.

[Updated]

X300, X301, X200 and X201, X220, X230, X100e, X120e, X121e, X1…done. They use the same 24RF08 clone like the other 61’s (appart from Z61 series that still use TPMs). For X300, the eeprom has alternate connection points located underneath, near the memory socket. X100e has the PS08 mini eeprom like the X61 and X121e features the L08 (same eeprom).

X300 testpoints here:
http://www.allservice.ro/forum/images/x300.jpg

X301 eeprom here:
http://www.allservice.ro/forum/images/x301.jpg
Many thanks to B. Nguyen (USA) for all support.

X200 added (courtesy JD Choi - Korea):
http://www.allservice.ro/forum/images/x200.jpg

X220 added (same location for X230):
http://www.allservice.ro/forum/images/x220.jpg

X201 (thanks to npkub for the first eeprom images):
http://www.allservice.ro/forum/images/x201.jpg

X100e:
http://www.allservice.ro/forum/images/x100e.jpg
And another one (thanks to R. Katz): http://www.allservice.ro/forum/images/x100e-1.jpg

X121e:
http://www.allservice.ro/forum/images/x121e.jpg

X1 (courtesy J. STRNAD - Czech Rep.):
http://www.allservice.ro/forum/images/x1.jpg

X1 Carbon gen1 (generation 2 and 3 use MEC1633L):
http://www.allservice.ro/forum/images/x1-carbon.jpg

T400 & T500 added here, the same story, same eeprom located on the back of the mainboard as in T61.

T400 and T400s eeprom:
http://www.allservice.ro/forum/images/t400.jpg
http://www.allservice.ro/forum/images/t400s.jpg

T500 eeprom:
http://www.allservice.ro/forum/images/t500.jpg

We’ve tested on 2 mainboards and TCPA algo is again different.

Great thanks to V. Rikalovic (Serbia) and M. Yang (USA) for the nice shots.

R400, R500, W500 and W700 - R400 and W500 have the eeprom underneath. For R500 is the same 24RF08 clone located on the upper side of the motherboard, under the PCcard/ExpressCard cage. The board must be removed form the Mg frame and you have to peel the black sticker that covers the area

R400 eeprom:
http://www.allservice.ro/forum/images/R400.jpg

R500 eeprom:
http://www.allservice.ro/forum/images/R500.jpg

W500 eeprom:
http://www.allservice.ro/forum/images/w500.jpg

W700 eeprom:
http://www.allservice.ro/forum/images/w700.jpg

SL410 & SL510 - Looks like the new SL series switched from AMI to Phoenix FirstBIOS so our old friend (24RF08 - PS08) is back in business once again. R24RF08/W24RF08 is the right software, as usual.
*The older SL400/SL500 still need SPEG programmer to be unlocked.

SL410 eeprom:
http://www.allservice.ro/forum/images/SL410.jpg

SL510 eeprom:
http://www.allservice.ro/forum/images/SL510.jpg

The pictures are courtesy of J.D. Choi - Korea.

T410, T410s and T510
T410 and T510 eeprom here:
http://www.allservice.ro/forum/images/t410.jpg
http://www.allservice.ro/forum/images/t410s.jpg
http://www.allservice.ro/forum/images/t510.jpg (Added)

Thanks to Osman (Netherlands) for earlier T510 pictures.

Edge 13’, 14’ and 15’
This is an Edge 13 and 15, the rest are pretty similar:
http://www.allservice.ro/forum/images/edge15.jpg
http://www.allservice.ro/forum/images/edge13.jpg

Lenovo L412 / L512
L512 looks similar to Edge15, supposely L412 is also the same design. We’ll update the forum shortly:
http://www.allservice.ro/forum/images/l512.jpg

Big thanks go to G. Williams in UK for sending us one of these.

W510/W520/W530/W701
Same eeprom location area for W510, W520 and W530
http://www.allservice.ro/forum/images/w510.jpg
http://www.allservice.ro/forum/images/w520-w510.jpg

T420, T420s, T520, T530
All of them use the tiny L08 eeprom. These models have passprase always active, and they require TCPA unlock service and W24RF08. T530 has the eeprom covered by the black stickers

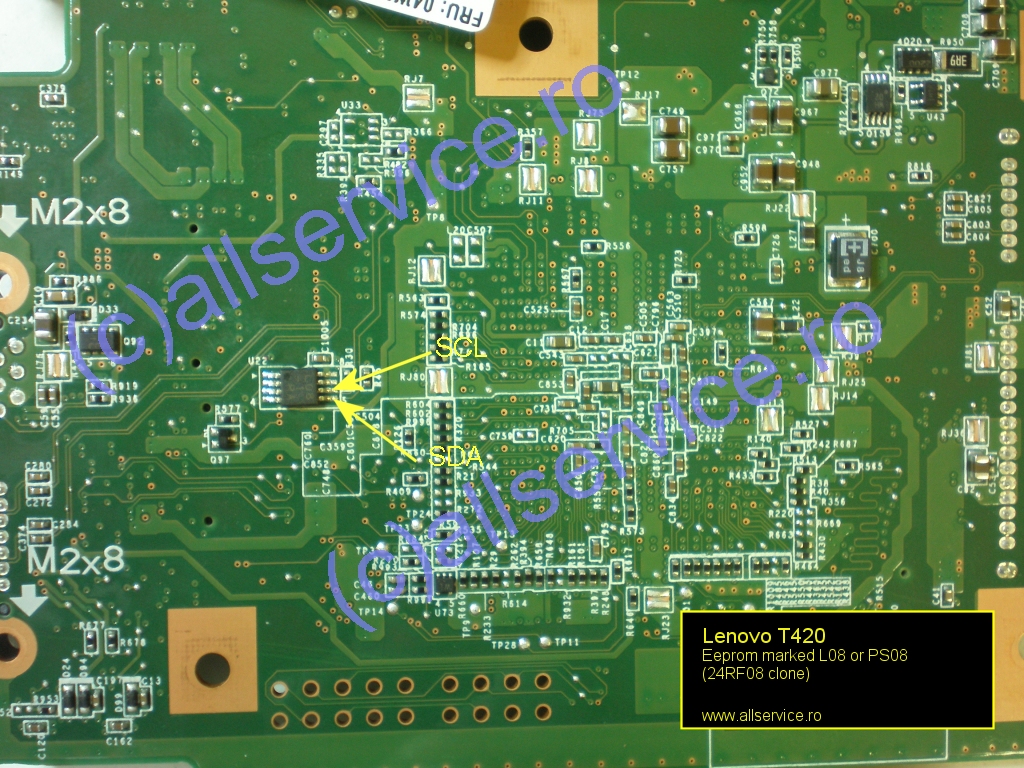

http://www.allservice.ro/forum/images/t420.jpg
http://www.allservice.ro/forum/images/t420s.jpg
http://www.allservice.ro/forum/images/t520.jpg and the alternate layouthttp://www.allservice.ro/forum/images/t520-2.jpg
http://www.allservice.ro/forum/images/t530.jpg

Thinkpad Edge E120, E320
L08 eeprom again:
http://www.allservice.ro/forum/images/e120.jpg

Thinkpad Edge E220s,E531
P24S08 eeprom:
http://www.allservice.ro/forum/images/e220s.jpg
http://www.allservice.ro/forum/images/e531.jpg

Lenovo E420, E520
These ones use SP08 eeprom (same as 24RF08).
http://www.allservice.ro/forum/images/e420.jpg

Lenovo E530, E540
Same 24RF08 clone.
http://www.allservice.ro/forum/images/e530.jpg
http://www.allservice.ro/forum/images/e540.jpg

Thinkpad Helix
L08 eeprom again:
http://www.allservice.ro/forum/images/helix.jpg
Helix new generations are using MEC1633L
http://www.allservice.ro/forum/viewtopic.php?t=3044

Thinkpad T430 and T430s
http://www.allservice.ro/forum/images/t430.jpg
http://www.allservice.ro/forum/images/t430s.jpg

Thinkpad T431 (s)
http://www.allservice.ro/forum/images/t431s.jpg

Lenovo L420 / L520
Same location for both
www.allservice.ro/forum/images/l420.jpg

Lenovo L430 / L530
Same location for both
www.allservice.ro/forum/images/L430.jpg

Lenovo L540
L08 (24RF08)
www.allservice.ro/forum/images/L540.jpg

Note:
All images are property of allservice.ro or their authors passed the publishing rights to allservice.ro. You are allowed to use or publish them but not to edit them or to remove their original watermarks

Victor Voinea
ALLservice HQ, Romania.

作者：james-lx
来源：CSDN
原文：https://blog.csdn.net/ot512csdn/article/details/72571674
版权声明：本文为博主原创文章，转载请附上博文链接！
**下面说操作
1，正常开机，约2-3秒用小一字短接SCL和SDA针脚
2，屏幕提示错误，按F1进入BIOS，
