iptables filter表FORWARD规则管理脚本
iptables filter表的FORWARD规则管理脚本主要用于管理和控制Linux系统中数据包的转发规则。这也是Linux开启转发后用的比较的防火墙规则，可以通过以下脚本方便快捷维护规则，减低iptables管理的复杂度，大大提升效率。
#!/bin/bash
# 防火墙规则智能管理工具 - 完整功能版
CONFIG_FILE="/etc/iptables/firewall_rules.cfg"
RULES_FILE="/etc/iptables/rules.v4"
# 检查root权限
check_root() {
[ "$(id -u)" -ne 0 ] && echo "错误：需要root权限" && exit 1
}
# 检测后端类型
detect_backend() {
iptables --version 2>&1 | grep -q nf_tables && echo "nft" || echo "legacy"
}
# 保存规则
save_rules() {
if iptables-save > "$RULES_FILE" 2>/dev/null; then
echo "✓ 规则已保存到 $RULES_FILE"
else
echo "⚠ 保存规则文件失败，但规则已添加到运行时"
fi
}
# 显示当前规则带行号
show_rules_with_numbers() {
echo "当前FORWARD链规则（带行号）:"
echo "============================="
iptables -L FORWARD -n --line-numbers --verbose
echo ""
}
# 智能添加规则（支持选择ACCEPT/DROP）
add_rule_smart() {
local source_ip="$1"
local dest="$2"
local port="$3"
local protocol="$4"
local action="$5"
local insert_position="$6"
local comment="$7"
local backend=$(detect_backend)
echo "系统后端: $backend"
[ "$protocol" == "any" ] && protocol="tcp"
# 对于nftables后端，使用兼容方法
if [ "$backend" == "nft" ]; then
add_rule_nft_compatible "$source_ip" "$dest" "$port" "$protocol" "$action" "$insert_position" "$comment"
else
add_rule_legacy "$source_ip" "$dest" "$port" "$protocol" "$action" "$insert_position" "$comment"
fi
}
# nftables后端兼容方法
add_rule_nft_compatible() {
local source_ip="$1"
local dest="$2"
local port="$3"
local protocol="$4"
local action="$5"
local insert_position="$6"
local comment="$7"
local success_count=0
echo "检测到nftables后端，使用兼容方法..."
# 处理端口范围和多端口
if [ "$port" != "any" ] && [ -n "$port" ]; then
if echo "$port" | grep -q ":"; then
# 端口范围: 22:23 → 分别添加22和23
local start_port=${port%:*}
local end_port=${port#*:}
if [ "$start_port" -le "$end_port" ] 2>/dev/null; then
echo "检测到端口范围 $port，将拆分为单个端口添加..."
for ((p=start_port; p<=end_port; p++)); do
if add_single_rule "$source_ip" "$dest" "$p" "$protocol" "$action" "$insert_position" "$comment"; then
((success_count++))
fi
done
else
echo "✗ 无效的端口范围: $port"
return 1
fi
elif echo "$port" | grep -q ","; then
# 多端口: 80,443 → 分别添加
IFS=',' read -ra ports <<< "$port"
for p in "${ports[@]}"; do
p=$(echo "$p" | xargs)
[ -z "$p" ] && continue
if add_single_rule "$source_ip" "$dest" "$p" "$protocol" "$action" "$insert_position" "$comment"; then
((success_count++))
fi
done
else
# 单个端口
if add_single_rule "$source_ip" "$dest" "$port" "$protocol" "$action" "$insert_position" "$comment"; then
((success_count++))
fi
fi
else
# 任意端口
if add_single_rule "$source_ip" "$dest" "" "$protocol" "$action" "$insert_position" "$comment"; then
((success_count++))
fi
fi
[ $success_count -gt 0 ] && return 0 || return 1
}
# 添加单条规则（支持ACCEPT/DROP选择）
add_single_rule() {
local source_ip="$1"
local dest="$2"
local port="$3"
local protocol="$4"
local action="$5"
local insert_position="$6"
local comment="$7"
local cmd="iptables"
# 判断是插入还是追加
if [ -n "$insert_position" ] && [ "$insert_position" -gt 0 ]; then
cmd="$cmd -I FORWARD $insert_position"
else
cmd="$cmd -A FORWARD"
fi
cmd="$cmd -s $source_ip -d $dest -p $protocol"
if [ -n "$port" ]; then
cmd="$cmd --dport $port"
fi
# 根据用户选择设置动作
cmd="$cmd -j $action"
echo "执行: $cmd"
if eval "$cmd" 2>/dev/null; then
echo "✓ 规则添加成功（动作: $action）"
# 记录规则信息到配置文件
local rule_id="rule_$(date +%s)_$RANDOM"
local rule_info="$rule_id|$source_ip|$dest|$port|$protocol|$action|$insert_position||$comment"
echo "$rule_info" >> "$CONFIG_FILE"
echo "✓ 规则已记录 (ID: $rule_id)"
return 0
else
echo "✗ 规则添加失败"
return 1
fi
}
# 传统iptables后端
add_rule_legacy() {
local source_ip="$1"
local dest="$2"
local port="$3"
local protocol="$4"
local action="$5"
local insert_position="$6"
local comment="$7"
local cmd="iptables"
if [ -n "$insert_position" ] && [ "$insert_position" -gt 0 ]; then
cmd="$cmd -I FORWARD $insert_position"
else
cmd="$cmd -A FORWARD"
fi
cmd="$cmd -s $source_ip -d $dest -p $protocol"
if [ "$port" != "any" ] && [ -n "$port" ]; then
if echo "$port" | grep -q ","; then
cmd="$cmd -m multiport --dports $port"
else
cmd="$cmd --dport $port"
fi
fi
# 根据用户选择设置动作
cmd="$cmd -j $action"
echo "执行: $cmd"
if eval "$cmd"; then
echo "✓ 规则添加成功（动作: $action）"
local rule_id="rule_$(date +%s)_$RANDOM"
echo "$rule_id|$source_ip|$dest|$port|$protocol|$action|$insert_position||$comment" >> "$CONFIG_FILE"
echo "✓ 规则已记录 (ID: $rule_id)"
return 0
else
echo "✗ 规则添加失败"
return 1
fi
}
# 添加规则主函数

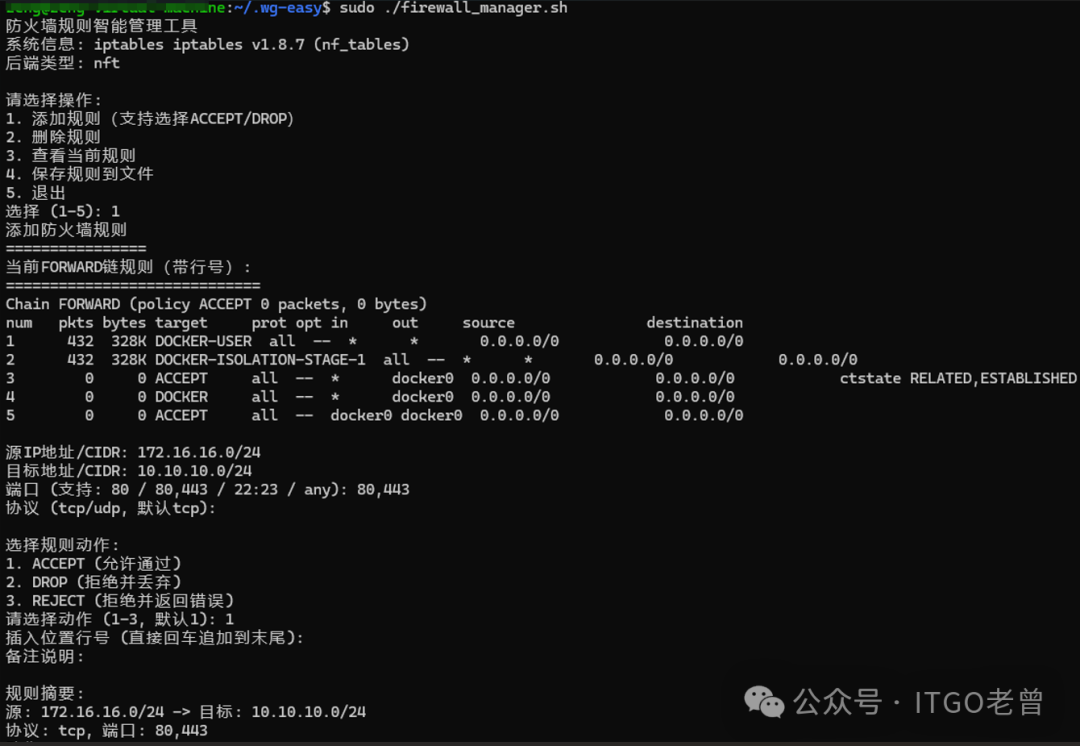

add_rule() {
echo "添加防火墙规则"
echo "================"
show_rules_with_numbers
read -p "源IP地址/CIDR: " source_ip
read -p "目标地址/CIDR: " dest
read -p "端口 (支持: 80 / 80,443 / 22:23 / any): " port
read -p "协议 (tcp/udp, 默认tcp): " protocol
# 选择ACCEPT/DROP动作
echo ""
echo "选择规则动作:"
echo "1. ACCEPT (允许通过)"
echo "2. DROP (拒绝并丢弃)"
echo "3. REJECT (拒绝并返回错误)"
read -p "请选择动作 (1-3, 默认1): " action_choice
case $action_choice in
1|"") action="ACCEPT" ;;
2) action="DROP" ;;
3) action="REJECT" ;;
*) action="ACCEPT" ; echo "使用默认动作: ACCEPT" ;;
esac
read -p "插入位置行号 (直接回车追加到末尾): " insert_position
read -p "备注说明: " comment
[ -z "$protocol" ] && protocol="tcp"
[ -z "$port" ] && port="any"
[ -z "$insert_position" ] && insert_position=""
# 验证输入
if ! echo "$source_ip" | grep -qE '^[0-9]+\.[0-9]+\.[0-9]+\.[0-9]+(/[0-9]+)?$' || \
! echo "$dest" | grep -qE '^[0-9]+\.[0-9]+\.[0-9]+\.[0-9]+(/[0-9]+)?$'; then
echo "✗ IP地址格式错误" && return 1
fi
echo -e "\n规则摘要:"
echo "源: $source_ip -> 目标: $dest"
echo "协议: $protocol, 端口: $port"
echo "动作: $action"
[ -n "$insert_position" ] && echo "插入位置: 第 $insert_position 行"
echo "备注: $comment"
read -p "确认添加? (y/n): " confirm
if [ "$confirm" == "y" ] || [ "$confirm" == "Y" ]; then
if add_rule_smart "$source_ip" "$dest" "$port" "$protocol" "$action" "$insert_position" "$comment"; then
save_rules
echo -e "\n添加后的规则列表:"
show_rules_with_numbers
else
echo "✗ 规则添加失败"
fi
else
echo "操作取消"
fi
}
# 修复的规则内容匹配删除功能（解决图片中的问题）
delete_rule_by_content_fixed() {
echo "按规则内容匹配删除（修复版）"
echo "==========================="
show_rules_with_numbers
read -p "输入要删除的规则源IP: " source_ip
read -p "输入要删除的规则目标IP: " dest_ip
read -p "输入要删除的规则端口 (可选): " port
read -p "输入要删除的规则协议 (可选): " protocol
# 输入验证
if [ -z "$source_ip" ] && [ -z "$dest_ip" ]; then
echo "错误：至少需要输入源IP或目标IP"
return 1
fi
echo -e "\n搜索条件:"
[ -n "$source_ip" ] && echo "源IP: $source_ip"
[ -n "$dest_ip" ] && echo "目标IP: $dest_ip"
[ -n "$port" ] && echo "端口: $port"
[ -n "$protocol" ] && echo "协议: $protocol"
echo ""
# 获取规则并匹配（修复字段解析）
local rules_output=$(iptables -L FORWARD -n --line-numbers | tail -n +3)
local matched_lines=()
local match_count=0
echo "匹配的规则:"
while IFS= read -r line; do
[ -z "$line" ] && continue
# 修复：使用更可靠的字段解析方法
local line_num=$(echo "$line" | awk '{print $1}')
local rule_target=$(echo "$line" | awk '{print $2}')
local rule_prot=$(echo "$line" | awk '{print $3}')
# 修复：正确提取源IP和目标IP（解决图片中的问题）
# 使用正则表达式提取IP地址，不依赖固定位置
local ip_matches=$(echo "$line" | grep -oE '[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}(/[0-9]{1,2})?' | head -2)
local rule_src=$(echo "$ip_matches" | sed -n '1p')
local rule_dst=$(echo "$ip_matches" | sed -n '2p')
# 修复：正确提取端口信息
local rule_port=""
if echo "$line" | grep -q "dpt:"; then
rule_port=$(echo "$line" | grep -oE 'dpt:[0-9]+' | head -1 | cut -d: -f2)
fi
# 调试信息（显示解析结果）
echo "调试: 行$line_num 源:$rule_src 目标:$rule_dst 协议:$rule_prot 端口:$rule_port"
# 检查是否匹配
local match=1
# 源IP匹配（精确匹配）
if [ -n "$source_ip" ]; then
if [ "$rule_src" != "$source_ip" ]; then
match=0
echo "调试: 源IP不匹配 - 规则:$rule_src 输入:$source_ip"
fi
fi
# 目标IP匹配
if [ $match -eq 1 ] && [ -n "$dest_ip" ]; then
if [ "$rule_dst" != "$dest_ip" ]; then
match=0
echo "调试: 目标IP不匹配 - 规则:$rule_dst 输入:$dest_ip"
fi
fi
# 协议匹配
if [ $match -eq 1 ] && [ -n "$protocol" ]; then
if [ "$rule_prot" != "$protocol" ] && [ "$rule_prot" != "all" ]; then
match=0
echo "调试: 协议不匹配 - 规则:$rule_prot 输入:$protocol"
fi
fi
# 端口匹配
if [ $match -eq 1 ] && [ -n "$port" ]; then
if [ -z "$rule_port" ] || [ "$rule_port" != "$port" ]; then
match=0
echo "调试: 端口不匹配 - 规则端口:$rule_port 输入端口:$port"
fi
fi
# 只匹配ACCEPT/DROP/REJECT规则，避免匹配DOCKER链等
if [ $match -eq 1 ] && [[ "$rule_target" =~ ^(ACCEPT|DROP|REJECT)$ ]]; then
echo "✓ 匹配规则行号 $line_num: $line"
matched_lines+=($line_num)
((match_count++))
elif [ $match -eq 1 ]; then
echo "调试: 规则目标不匹配 - $rule_target"
fi
done <<< "$rules_output"
if [ $match_count -eq 0 ]; then
echo "未找到匹配的规则"
echo ""
echo "可能的原因:"
echo "1. IP地址输入错误（请检查源IP和目标IP）"
echo "2. 规则可能在其他链中（如DOCKER-USER）"
echo "3. 匹配条件太严格"
echo "4. 规则显示格式解析问题（已修复）"
return 1
fi
echo -e "\n找到 $match_count 条匹配规则"
read -p "确认删除这些规则? (y/n): " confirm
if [ "$confirm" = "y" ] || [ "$confirm" = "Y" ]; then
local deleted_count=0
# 倒序删除（避免行号变化）
for ((i=${#matched_lines[@]}-1; i>=0; i--)); do
local line_num=${matched_lines[i]}
echo "删除行号 $line_num..."
if iptables -D FORWARD $line_num 2>/dev/null; then
echo "✓ 删除成功"
((deleted_count++))
sleep 0.1
else
echo "✗ 删除失败"
fi
done
echo "删除完成: $deleted_count/$match_count 条规则被删除"
save_rules
echo -e "\n删除后的规则列表:"
show_rules_with_numbers
else
echo "删除操作已取消"
fi
}
# 批量删除行号功能
delete_rule_by_number_enhanced() {
show_rules_with_numbers
echo "批量删除说明："
echo "• 输入单个行号: 删除指定规则"
echo "• 输入多个行号（用逗号分隔）: 7,8,9"
echo "• 输入范围: 10-15"
echo "• 混合输入: 7,8,10-12,15"
echo ""
read -p "输入要删除的行号: " line_input
if [ -z "$line_input" ]; then
echo "错误：请输入行号"
return 1
fi
# 解析输入的行号
local lines_to_delete=()
IFS=',' read -ra parts <<< "$line_input"
for part in "${parts[@]}"; do
part=$(echo "$part" | xargs)
if [[ "$part" == *"-"* ]]; then
local start_range=${part%-*}
local end_range=${part#*-}
if [[ "$start_range" =~ ^[0-9]+$ ]] && [[ "$end_range" =~ ^[0-9]+$ ]] && [ "$start_range" -le "$end_range" ]; then
for ((i=start_range; i<=end_range; i++)); do
lines_to_delete+=($i)
done
else
echo "⚠ 忽略无效范围: $part"
fi
else
if [[ "$part" =~ ^[0-9]+$ ]]; then
lines_to_delete+=($part)
else
echo "⚠ 忽略无效行号: $part"
fi
fi
done
if [ ${#lines_to_delete[@]} -eq 0 ]; then
echo "错误：没有有效的行号输入"
return 1
fi
lines_to_delete=($(printf "%s\n" "${lines_to_delete[@]}" | sort -nu))
echo "将要删除的行号: ${lines_to_delete[*]}"
echo -e "\n将要删除的规则:"
local total_rules=$(iptables -L FORWARD -n --line-numbers | tail -n +3 | wc -l)
for line_num in "${lines_to_delete[@]}"; do
if [ "$line_num" -ge 1 ] && [ "$line_num" -le "$total_rules" ]; then
local rule_info=$(iptables -L FORWARD -n --line-numbers | awk -v line="$line_num" '$1 == line')
echo "行号 $line_num: $rule_info"
else
echo "⚠ 行号 $line_num 无效（有效范围: 1-$total_rules）"
fi
done
read -p "确认删除以上规则? (y/n): " confirm
if [ "$confirm" == "y" ] || [ "$confirm" == "Y" ]; then
local deleted_count=0
local failed_count=0
IFS=$'\n' sorted_lines=($(sort -nr <<< "${lines_to_delete[*]}"))
unset IFS
for line_num in "${sorted_lines[@]}"; do
if [ "$line_num" -ge 1 ] && [ "$line_num" -le "$total_rules" ]; then
echo "删除行号 $line_num..."
if iptables -D FORWARD "$line_num" 2>/dev/null; then
echo "✓ 删除成功"
((deleted_count++))
sleep 0.1
else
echo "✗ 删除失败"
((failed_count++))
fi
else
echo "⚠ 跳过无效行号: $line_num"
((failed_count++))
fi
done
echo "删除完成: 成功 $deleted_count 条, 失败 $failed_count 条"
save_rules
echo -e "\n删除后的规则列表:"
show_rules_with_numbers
else
echo "删除操作已取消"
fi
}
# 删除规则主函数
delete_rule() {
echo "删除规则选项:"
echo "1. 按行号删除（支持批量删除多条规则）"
echo "2. 按规则内容匹配删除（修复版）"
echo "3. 清空整个FORWARD链"
read -p "请选择删除方式 (1-3): " delete_method
case $delete_method in
1) delete_rule_by_number_enhanced ;;
2) delete_rule_by_content_fixed ;;
3)
read -p "确认清空整个FORWARD链? (y/n): " confirm
if [ "$confirm" == "y" ]; then
iptables -F FORWARD
echo "✓ FORWARD链已清空"
save_rules
echo -e "\n清空后的规则列表:"
show_rules_with_numbers
else
echo "操作取消"
fi
;;
*)
echo "无效选择"
;;
esac
}
# 主菜单
main_menu() {
check_root
mkdir -p /etc/iptables
echo "防火墙规则智能管理工具"
echo "系统信息: iptables $(iptables --version 2>&1 | head -1)"
echo "后端类型: $(detect_backend)"
while true; do
echo -e "\n请选择操作:"
echo "1. 添加规则（支持选择ACCEPT/DROP）"
echo "2. 删除规则（包含修复的内容匹配删除）"
echo "3. 查看当前规则"
echo "4. 保存规则到文件"
echo "5. 退出"
read -p "选择 (1-5): " choice
case $choice in
1) add_rule ;;
2) delete_rule ;;
3) show_rules_with_numbers ;;
4) save_rules ;;
5) exit 0 ;;
*) echo "无效选择" ;;
esac
done
}
# 启动脚本
main_menu测试界面如下
支付宝微信扫一扫，打赏作者吧～本文链接：https://kinber.cn/post/5718.html 转载需授权！
推荐本站淘宝优惠价购买喜欢的宝贝:
您阅读本篇文章共花了：
